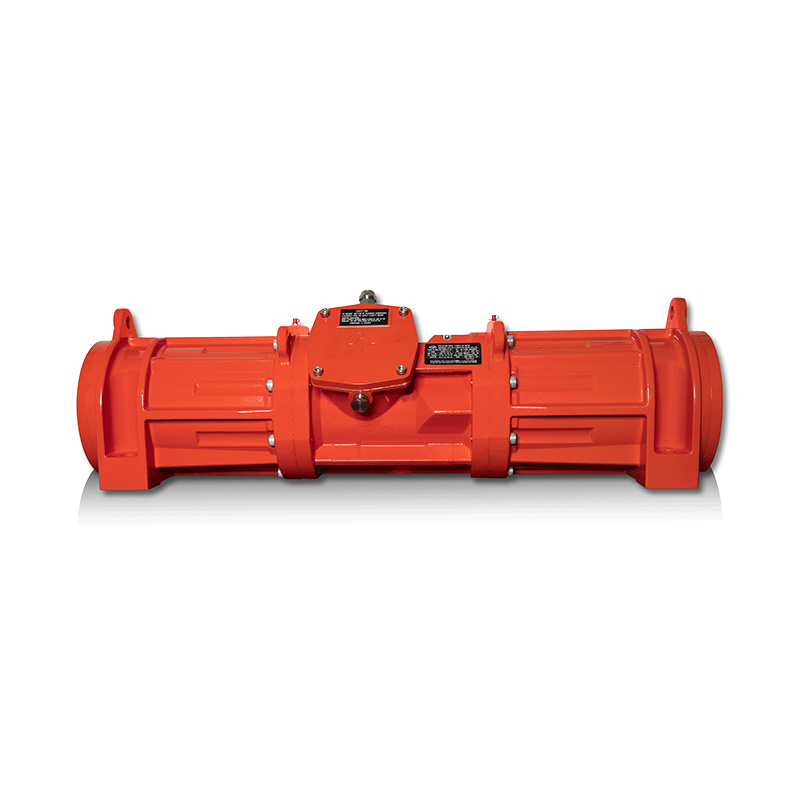

PT-MVE-SVL SERIES HIGH EFFICIENCY EXPLOSION-PROOF VIBRATION MOTOR
The SV series vibration motor, like other foot mounted vibration motors, provides vibration force for vibration mechanical equipment, Two parallel installed Sv three segment long motors provide linear vibration force, and one installed provides circumferential vibration force. The Sv series vibration motor does not require any crossgirder to be installed on vibration mechanical equipment,as its body acts as a crossgirder;
The SV series vibration motor is designed to replace the long vibration motor installed on the imported brand vibrating screen. Due to its versatility, the SV three segment long vibration motor can also be used in many other application industries.
Explosion proof class
Ex db Il B T4 Gb
Ex tb llCT130℃C Db
Quarry / Mining Industry
Dry wet particle separation
Vibration screening
Oil / Gas
Drilling fluid recycle system
Advantages of the Three Section Series Motors
The size 75D0 frame in the SV series vibration motor can match the installation size of the imported brand long motor foot
Famous bearing brand could be customized
Long bearing life
Eccentric block for easy adjustment
Maintenance free
Application advantages
The excitation force directly acts on the screen wall, improving the efficiency of screening and the lifespan of the screen.
Through the preset holes on the driven eccentric block, the SV series three-stage long vibration motor can achieve adiustment of vibration force.
The SV series vibration motor is preset with a star connection method in the junction box when finished, which is suitable for high voltage connection.
The SV series vibration motor can also be changed from a star connection to delta connection by simply adjusting the connecting plates in the junction box,Thus, it can be used at low voltage.
The SV series vibration motor can provide multiple voltages according to requirements.
Three stage motor
Application: vibrating screens, shale vibrating screens, feeders/conveyors, and dehydrators for quarrying, mining, recycling, and other fields.
Problem solving: The SV series vibration motor is part of the machine: it eliminates the crossgirder used to support the motor, allowing the excitation force to directly act on the screen wall, avoiding energy dissipation
Parameters
0utput voltage: 220/380V 50Hz
Environmental temperature: -20℃/+40℃
Protection level: lP66
Junction box protection: thermistor PTC130C or PT100 thermoelectric anode
insulation level: F/H
Model | Rated Force (KN) | Rated Power (KW) | Current (A) |
PT-MVE3500/15-SVL1-Ex | 35 | 1.84 | 4 |
PT-MVE3500/15-SVL2-Ex | 35 | 1.84 | 4 |
PT-MVE3800/15-SVL1-Ex | 38 | 1.84 | 4 |
PT-MVE4300/15-SVL1-Ex | 43 | 1.84 | 4 |
PT-MVE5000/15-SVL1-Ex | 50 | 2.6 | 5.5 |
PT-MVE5300/15-SVL1-Ex | 55 | 2.6 | 5.5 |
PT-MVE5500/15-SVL1-Ex | 55 | 2.6 | 5.5 |

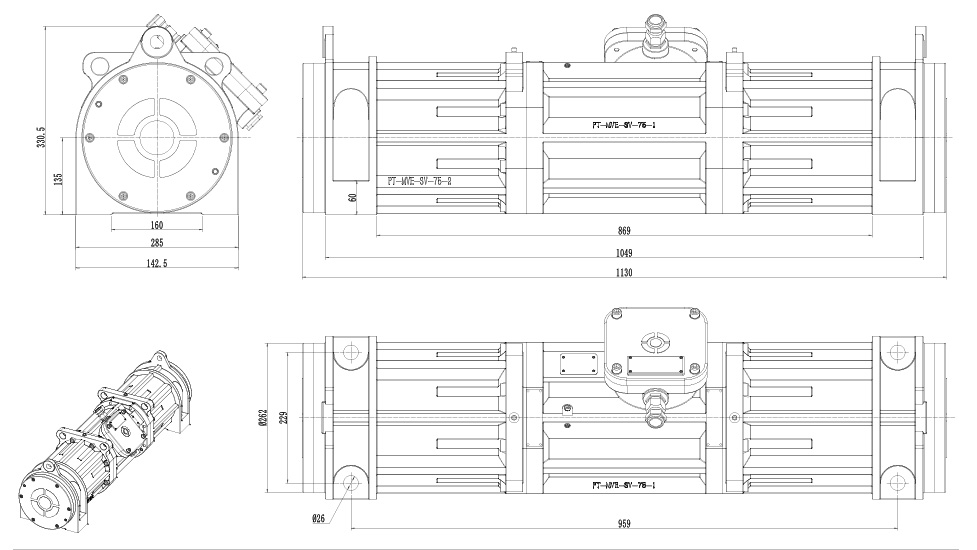

Model | A | B | H | A1 | B1 | AA | BB | HA | HD | L | D | K |
PT-MVE3500/15-SVL1-Ex | 229 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
PT-MVE3500/15-SVL2-Ex | 241.3 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
PT-MVE3800/15-SVL1-Ex | 229 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
PT-MVE4300/15-SVL1-Ex | 229 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
PT-MVE5000/15-SVL1-Ex | 229 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
PT-MVE5300/15-SVL1-Ex | 229 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
PT-MVE5500/15-SVL1-Ex | 229 | 959 | 135 | 160 | 870 | 285 | 1048 | 60 | 330 | 1130 | 262 | 29/26 |
